S.M.S.L PH-1 Phono Preamp for MM Turntable, MM Phono Amp Preamplifier for Phonograph Record Player Active Speakers, RCA/6.35mm Headphone Amplifier Pre-amp with Gain 46dB DC5V Power

S.M.S.L PH-1 MM Phono Preamplifier Phono Amplifier for Home Audio System Features Using a high-performance MM phono amplifier circuit, with a high gain of 46dB, a distortion level of -81dB is still achieved. With pop control circuitry, there is no popping sound when switching on and off. Low-noise power supply ensures a quiet sound background. Extremely small size for flexible placement. Optimized signal path and high sound quality design. Focus on mm ultra-low distortion Better be the best single MM than compromise MM+MC. In the eyes of PH1, there is only MM. Unlike many models with MM/MC switching on the market, we only have MM, and the benefits of doing so are endless: 1. The MC amplifier circuit is removed, and the circuit performance is improved by 50%! 2. 90% of users use MM cartridge! 3. User convenience is improved by 50%! 4. Reduce the cost and the selling price! Advanced isolated power supply Ultra low noise: Precision low noise chip. Tiny design: tiny circuit board, performance is not reduced. Gold-plated jacks: Oxidation resistance and corrosion resistance, ensuring zero loss of signal transmission. Short path and good sound: Shortest signal path, high sound quality design. Product Parameters Headphone Output Power: 90mWx2(32Ω) Frequency Response: 20Hz-20kHz THD+N(unweighted): 0.008%(-81dB) Channel Separation: -77dB(1kHz) Gain: 46dB SNR: 84dB Power Consumption: 1W Power Input: DC 5V 500mA Size: 94x30x96mm(WxHxD) Weight: 0.205kg Accessories List: 1x S.M.S.L PH-1 1x USB Power Cable 1x User Manual 1x S.M.S.L Card

• MM Phono Preamplifier: The PH-1 is designed specifically for MM cartridges. By eliminating the MC amplification circuit, it boosts circuit performance by 50%! This makes it a popular choice among users and enhances convenience

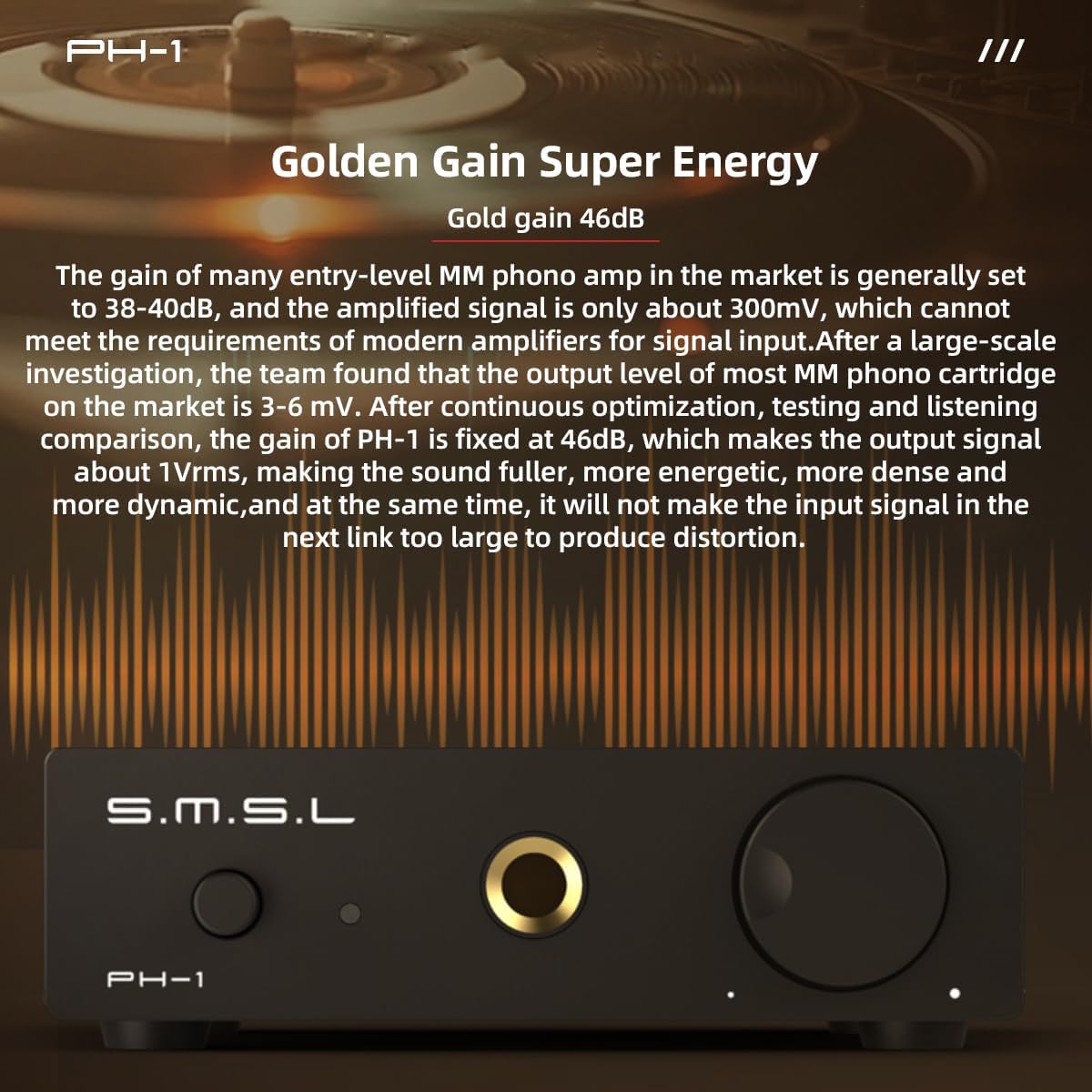

• Low Noise Operation: The PH-1 boasts an advanced power processing circuit that provides isolated dual power supply from a DC input. With a gain of 46dB, it ensures a robust output signal of around 1000mV, preventing distortion from large input signal
• Great Audio Quality: Equipped with a high-quality 5V DC power supply, the PH-1 delivers stable performance. Key performance metrics include -81dB THD+N, -77dB Channel Separation and 84dB Signal-to-Noise Ratio, offering an exceptional value for money
• 6.35mm Headphone Amplifier: The PH-1 mm phono amp features an integrated independent 6.35mm jack headphone amplifier. This design is perfect for situations where using speakers is impractical and can also serve as a front-stage volume control for active speakers
• User Friendly Design: It features an easy to use one-touch power button, headphone volume control knob. In addition, the ground connection ensures a secure connection. The design is both visually appealing and ergonomically well-crafted
• Phono Amplifier for Turntable: You can connect it to your turntable and output it to your amplifier and speakers. PH-1 also has a 6.35mm headphone output interface, which can be used as a headphone amplifier
• Attention: 1 Please ground the device to avoid noise during use. 2. The accessories only include USB cable and do not include adapters
